1100*800mm Automatic Die Cutting Machine Auto Die Cutter For Packaging Efficiency

Function : die cutting,stamping,Automatic Die-cutting Machine in electric field,Manual Creasing,High Effieciency

Usage : sticker,trademark,Food Forming Machine,label,heat transfer industry

Automatic grade : Automatic,Semi-Automatic

Size : 1100*800mm,as requirement

Color : Requirement,Optional Color

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Brand Name : FINTEECH

Model Number : FB-HT 1650FC/1900FC/2100FC

Certification : CE

Place of Origin : CHINA

Contact Now

Automatic Die Cutting Machine Line for Packaging Efficiency
Product Overview

High-speed Automatic Die Cutting Production Line designed for superior efficiency in packaging operations. This integrated system combines multiple processes to optimize workflow and minimize manual intervention.

Key Features
  • Converting System Integration combines devices in line to reduce manual work
  • Automatic prefeeder maximizes feeding efficiency
  • Integrated automatic breaker with delivery unit reduces labor costs
  • Customizable to meet specific client requirements and processes
  • Superior stability and popular production mode in global markets
  • Preferred solution for corrugated board packaging industry
Technical Specifications
Paper Feeder
Model FB-HT2100FC FB-HT1900FC FB-HT1650FC
Sheet Size Max. 2100×1600mm
Min. 650×450mm		 Max. 1900×1400mm
Min. 650×450mm		 Max. 1650×1200mm
Min. 650×450mm
Corrugated Board Up To 1-9mm 1-9mm 1-9mm
Batch Height Max. 1800mm Max. 1800mm Max. 1800mm
Pile Weight 1400kg 1200kg 1000kg
Machine Weight 5000kg 4500kg 4000kg
Die Cutting Machine
Parameter FB-HT2100FC FB-HT1900FC FB-HT1650FC
Max. Sheet Size 2100×1600mm 1900×1400mm 1650×1200mm
Max. Die Cutting Size 2080×1580mm 1880×1380mm 1630×1180mm
Max. Die Cutting Speed 4000s/h 5000s/h 6000s/h
Max. Die Cutting Pressure 450ton 450ton 400ton
Total Power Required 47kw 40kw 38kw
Sharding Machine
Parameter FB-HT2100FC FB-HT1900FC FB-HT1650FC
Sheet Size Max. 2100mm, Min. 650mm Max. 1900mm, Min. 650mm Max. 1650mm, Min. 650mm
Max. Batch Thickness 300mm 300mm 300mm
Machine Weight 5000kg 4500kg 4000kg

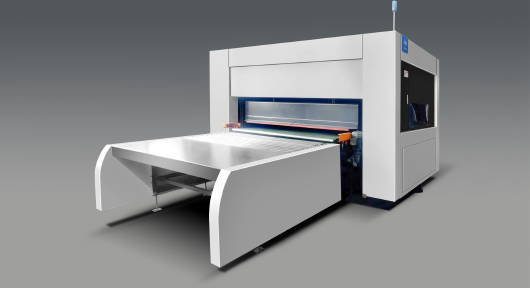

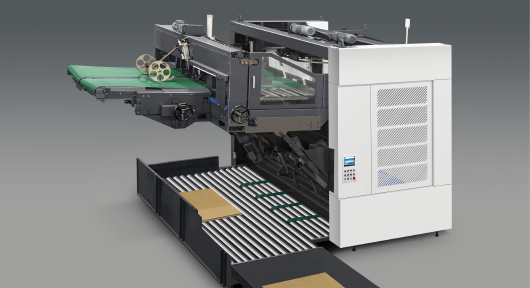

Product Images
1100*800mm Automatic Die Cutting Machine Auto Die Cutter For Packaging Efficiency 1100*800mm Automatic Die Cutting Machine Auto Die Cutter For Packaging Efficiency
