400×350mm Automatic Die Cutting Machine Industrial Die Cutter

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Condition : New

Product name : Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic paper die cutting punching machine price,BASCOCUT multi sheet cutter,Automatic rotary die cutting machine for corrugated carton box,small size die cutting machine

Automatic grade : Automatic,Semi-Automatic

Name : Die Cutting Machine

Function : die cutting,stamping,Automatic Die-cutting Machine in electric field,Manual Creasing,High Effieciency

Type : Die-cutting Machine,Paper Cutting Machine,Label cutter,Other,Packing Machine

Usage : sticker,trademark,Food Forming Machine,label,heat transfer industry

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training,Online support

Brand Name : FINTEECH

Model Number : FB-HT1060

Certification : CE

Place of Origin : China

Computerized : Yes,Semi-Automatic

Contact Now

Automatic Die Cutting Machine - FB-HT1060 Model
Product Overview

Our state-of-the-art automatic die cutting machine delivers precision cutting for various materials including paper, mylar, aluminum foil, and corrugated carton boxes. Designed for high efficiency in sticker, label, and heat transfer industries.

Key Attributes
Attribute Value
After-sales Service Overseas engineer support, video technical assistance, field installation, commissioning, training, and online support
Type Die-cutting Machine, Paper Cutting Machine, Label Cutter, Packing Machine
Automation Automatic & Semi-Automatic operation
Functions Die cutting, stamping, manual creasing with high efficiency
Applications Stickers, trademarks, labels, food forming, heat transfer industry
Technical Specifications
Specification Value
Maximum Sheet Size 1060×760mm
Minimum Sheet Size 400×350mm
Maximum Cutting Size 1060×745mm
Minimum Width of Double Cuts 5mm
Minimum Gripper Margin 9-17mm
Cutting Rule Height 23.8mm
Stock Range Paper: 80-2000g/m² (0.1-2mm), Corrugated board: up to 4mm
Die Cutting Accuracy ≤±0.075mm
Max. Die Cutting Force 300T
Max. Working Speed 9000 sheets/hour
Machine Dimensions 6703×4518×2302mm (L×W×H)
Net Weight 17000kg
Main Motor Power 15KW
Total Power Required 23KW
Advanced Features
400×350mm Automatic Die Cutting Machine Industrial Die Cutter

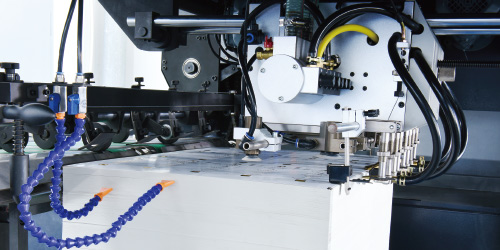

1. Precision Feeder System

Advanced technical platform ensures precise and consistent feeding for a wide range of stock from 90g/m² thin paper to 1000g/m² cardboard and micro flute corrugated board.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter
2. Ultrasonic Double Sheet Detector

Non-contact detection prevents paper scratching while providing reliable and quick setup for optimal performance.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter

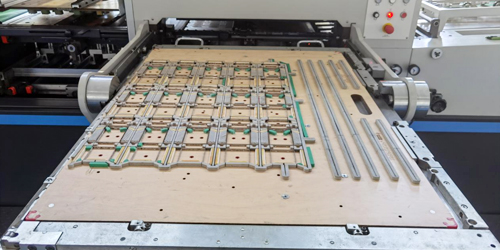

3. Quick Mold Locking Device

Center-line system with quick locking mechanism significantly reduces make-ready time for improved productivity.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter
4. Precision Plate Setting

5mm hardened cutting plate or 4+1mm sandwich plate on 15mm precision synthetic supporting plate with ±0.9mm micro adjustment for quick setup.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter

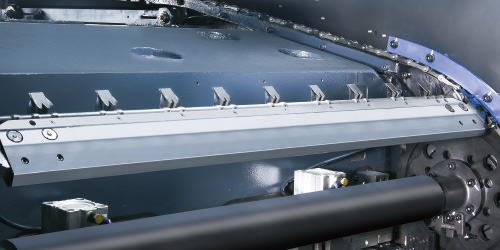

5. Advanced Gripper Bar System

Cutting-edge technology gripper bars with unique large motion angle eccentric worm gear drive system for exceptionally smooth operation.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter
6. Variable Speed Worm Gear Drive

Worm gear and toggle mechanism enables large motion angles for minimal nick size at maximum production speeds.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter
7. German Vacuum Pump System

High-quality Becker oil-free blower and vacuum pump for reliable performance.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter

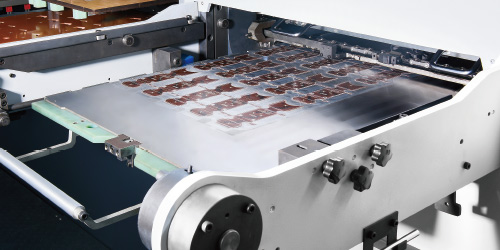

8. Auto Non-Stop Collecting System

Automatic switching between main and auxiliary collecting devices ensures continuous operation without manual intervention.

400×350mm Automatic Die Cutting Machine Industrial Die Cutter

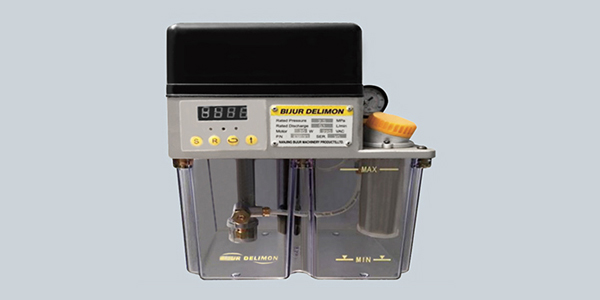

9. Automatic Lubrication System

Centralized auto-lubrication system maintains optimal performance of all driven components.
